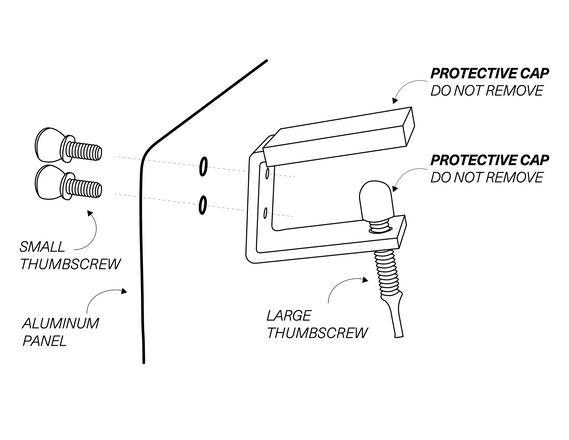

NOTE: Some clamp assemblies come with one small thumbscrew

1A: Turn LARGE THUMBSCREW down slightly on all three clamps to maximize gap.

1B: Remove two SMALL THUMBSCREWS from the back of each clamp.

1C. Align the holes of clamp with the holes in the aluminum panel.

1D: Hold the clamp in place, and reinsert the SMALL THUMBSCREWS through the back of the panel.

1E. Fasten screws to the clamp in both holes until clamp is tight. Repeat two more times until all 3 clamps are fastened securely. Aluminum panel should be in between the thumbscrews and the clamp.

DO NOT REMOVE the two high temperature resistant protective covers per clamp. These are intended to protect your patio heater from any scratches and increase the grip of each clamp.

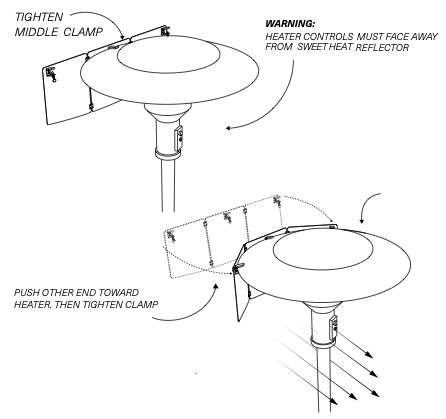

Step 2A: Start by fastening the middle clamp and make sure the heater controls face away from the Sweet Heat Reflector.

Step 2B: Tighten middle thumb screw until the reflector feels securely attached to the patio heater top.

Step 3A: After securing the middle clamp, push each of the sides toward the heater and tighten each thumb screw snuggly to secure reflector to heater.

Note: DO NOT OVERTIGHTEN

Step 3B: Tighten thumb screws until snug and reflector feels securely attached to heater.

Note: Inspect thumb screws often, tighten as needed, and do not touch or handle while hot.

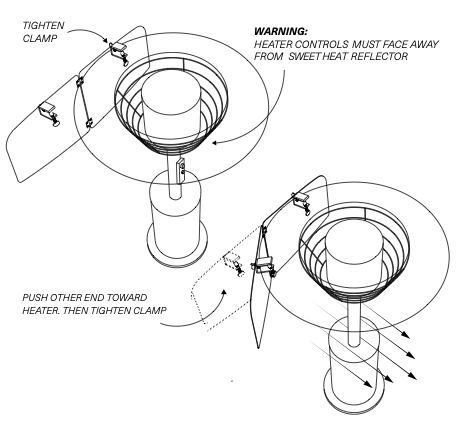

Step 2A. Start by fastening one of the clamps and make sure the heater controls face away from the Table Top Reflector.

Step 2B: Tighten first thumb screw until the reflector feels securely attached to the patio heater top.

Step 3A: After securing the clamp, fold the other side towards the heater and tighten the thumb screw snuggly to secure the reflector to heater.

Note: DO NOT OVERTIGHTEN

Step 3B: Tighten thumb screws until reflector feels securely attached to heater.

Note: Inspect thumb screws often, tighten as needed, and do not touch or handle while hot.
